OPERA Surface Displacement from Sentinel-1: Access and Visualize
Authors: Harshini Girish (UAH), Rajat Shinde (UAH), Alex Mandel (Development Seed), Chuck Daniels (Development Seed), Julia Signell (Element84)
Date:July 28, 2025
Description: This tutorial aims to provide information and code to help users get started working with the OPERA Sentinel-1 Surface Displacement product using the MAAP. We will search for the data within NASA’s Common Metadata Repository (CMR).
Run This Notebook
To access and run this tutorial within MAAP’s Algorithm Development Environment (ADE), please refer to the “Getting started with the MAAP” section of our documentation.
Disclaimer: It is highly recommended that you run this tutorial within MAAP’s ADE, which already includes packages specific to MAAP, such as maap-py. Running the tutorial outside of the MAAP ADE may lead to errors.
About the Data
The Level-3 OPERA Sentinel-1 Surface Displacement (DISP) product is generated through interferometric time-series analysis of Level-2 Coregistered Sentinel-1 Single Look Complex (CSLC) datasets. Using a hybrid Persistent Scatterer (PS) and Distributed Scatterer (DS) approach, this product quantifies Earth’s surface displacement in the radar line-of-sight. The DISP products enable the detection of anthropogenic and natural surface changes, including subsidence, tectonic deformation, and landslides.
The OPERA DISP suite comprises complementary datasets derived from Sentinel-1 and NISAR inputs, designated as DISP-S1 and DISP-NI, respectively. Each product, created per acquisition, adheres to a consistent structure, HDF5 file format, file-naming convention, and a 30 m spatial posting. This collection specifically includes DISP-S1 products, derived from Sentinel-1 data. For visualization and quick exploration, the Pangeo Image can be used for these datasets.
Importing Packages
[3]:
# --- MAAP & Cloud Access ---
from maap.maap import MAAP
import earthaccess
from s3fs import S3FileSystem
# File Access & Processing -
import os
import fsspec
import h5py
import re
import numpy as np
import xarray as xr
import dask
# Plotting & Visualization
import matplotlib.pyplot as plt
import folium
# Geospatial
import geopandas as gpd
from shapely.geometry import box, Polygon
# Misc
import requests
# Initialize MAAP
maap = MAAP()
Searching the Data
This performs a granule search using the maap.searchGranule() function on the OPERA Sentinel-1 displacement product collection.
[16]:
collection = maap.searchCollection(
cmr_host="cmr.earthdata.nasa.gov",
short_name="OPERA_L3_DISP-S1_V1"
)
len(collection)
[16]:
1
[17]:
results = maap.searchGranule(
short_name="OPERA_L3_DISP-S1_V1",
cmr_host="cmr.earthdata.nasa.gov",
limit=100
)
records = []
for r in results:
granule = r["Granule"]
try:
points = granule["Spatial"]["HorizontalSpatialDomain"]["Geometry"]["GPolygon"]["Boundary"]["Point"]
coords = [(float(p["PointLongitude"]), float(p["PointLatitude"])) for p in points]
if len(coords) >= 3:
polygon = Polygon(coords)
records.append({
"GranuleUR": granule["GranuleUR"],
"geometry": polygon
})
except KeyError:
continue
if records:
gdf = gpd.GeoDataFrame(records, crs="EPSG:4326")
print(f"Found {len(gdf)} granules with polygons.")
Found 100 granules with polygons.
Visualizing with Bounding Boxes
This code creates an interactive map showing bounding boxes for each granule using folium. It extracts geometry bounds from a GeoDataFrame, constructs a new GeoDataFrame of bounding boxes, and overlays them on a Leaflet map with tooltips displaying each granule’s ID.
[18]:
bounding_boxes = []
granule_ids = []
for i, geom in enumerate(gdf.geometry):
minx, miny, maxx, maxy = geom.bounds
bounding_boxes.append(box(minx, miny, maxx, maxy))
granule_ids.append(gdf["GranuleUR"][i])
bbox_gdf = gpd.GeoDataFrame({
"GranuleUR": granule_ids,
"geometry": bounding_boxes
}, crs="EPSG:4326")
map_center = bbox_gdf.geometry.union_all().centroid
m = folium.Map(location=[map_center.y, map_center.x], zoom_start=6)
for _, row in bbox_gdf.iterrows():
folium.GeoJson(
row["geometry"],
style_function=lambda x: {
"color": "green",
"weight": 2,
"fillOpacity": 0.1
},
tooltip=row["GranuleUR"]
).add_to(m)
m
[18]:
Search Granules using filters
Temporal Filter
Now that we have our collection ID, let’s search for granules within the collection. We’ll also add a temporal filter to our search. If you would like to search for granules without the temporal filter, simply comment out or remove the temporal=date_range line.
[19]:
date_range = "2016-07-01T00:00:00Z,2016-07-25T23:59:59Z"
concept_id = collection[0]["concept-id"]
results = maap.searchGranule(
temporal=date_range,
concept_id=concept_id,
cmr_host="cmr.earthdata.nasa.gov"
)
print(f"Found {len(results)} granules")
for r in results:
print(r["Granule"]["GranuleUR"])
Found 20 granules
OPERA_L3_DISP-S1_IW_F40286_VV_20160701T005555Z_20160818T005558Z_v1.0_20250724T212204Z
OPERA_L3_DISP-S1_IW_F40286_VV_20160701T005555Z_20170322T005556Z_v1.0_20250724T212204Z
OPERA_L3_DISP-S1_IW_F40286_VV_20160701T005555Z_20160911T005559Z_v1.0_20250724T212204Z
OPERA_L3_DISP-S1_IW_F40286_VV_20160701T005555Z_20170226T005556Z_v1.0_20250724T212204Z
OPERA_L3_DISP-S1_IW_F40286_VV_20160701T005555Z_20171012T005606Z_v1.0_20250724T212204Z
OPERA_L3_DISP-S1_IW_F40286_VV_20160701T005555Z_20170509T005558Z_v1.0_20250724T212204Z
OPERA_L3_DISP-S1_IW_F40286_VV_20160701T005555Z_20160725T005557Z_v1.0_20250724T212204Z
OPERA_L3_DISP-S1_IW_F40286_VV_20160701T005555Z_20170403T005556Z_v1.0_20250724T212204Z
OPERA_L3_DISP-S1_IW_F40286_VV_20160701T005555Z_20170918T005605Z_v1.0_20250724T212204Z
OPERA_L3_DISP-S1_IW_F40286_VV_20160701T005555Z_20170602T005559Z_v1.0_20250724T212204Z
OPERA_L3_DISP-S1_IW_F40286_VV_20160701T005555Z_20171024T005606Z_v1.0_20250724T212204Z
OPERA_L3_DISP-S1_IW_F40286_VV_20160701T005555Z_20170930T005605Z_v1.0_20250724T212204Z
OPERA_L3_DISP-S1_IW_F40286_VV_20160701T005555Z_20170310T005556Z_v1.0_20250724T212204Z
OPERA_L3_DISP-S1_IW_F40286_VV_20160701T005555Z_20170415T005557Z_v1.0_20250724T212204Z
OPERA_L3_DISP-S1_IW_F40287_VV_20160701T005608Z_20161005T005612Z_v1.0_20250724T213133Z
OPERA_L3_DISP-S1_IW_F40287_VV_20160701T005608Z_20170202T005609Z_v1.0_20250724T213133Z
OPERA_L3_DISP-S1_IW_F40287_VV_20160701T005608Z_20161122T005612Z_v1.0_20250724T213133Z
OPERA_L3_DISP-S1_IW_F40287_VV_20160701T005608Z_20161029T005613Z_v1.0_20250724T213133Z
OPERA_L3_DISP-S1_IW_F40287_VV_20160701T005608Z_20170214T005609Z_v1.0_20250724T213133Z
OPERA_L3_DISP-S1_IW_F40287_VV_20160701T005608Z_20170109T005609Z_v1.0_20250724T213133Z
Spatial Filter
Another filter we can apply is a spatial filter.
[20]:
granule_bbox = "-104.57446,23.91956,-101.85669,25.95518"
results = maap.searchGranule(
concept_id=concept_id,
bounding_box=granule_bbox,
cmr_host="cmr.earthdata.nasa.gov"
)
print(f"Found {len(results)} granules")
for r in results:
print(r["Granule"]["GranuleUR"])
Found 20 granules
OPERA_L3_DISP-S1_IW_F40291_VV_20160701T005736Z_20161029T005740Z_v1.0_20250724T213304Z
OPERA_L3_DISP-S1_IW_F40291_VV_20160701T005736Z_20170310T005736Z_v1.0_20250724T213304Z
OPERA_L3_DISP-S1_IW_F40291_VV_20160701T005736Z_20161005T005740Z_v1.0_20250724T213304Z
OPERA_L3_DISP-S1_IW_F40291_VV_20160701T005736Z_20160725T005737Z_v1.0_20250724T213304Z
OPERA_L3_DISP-S1_IW_F40291_VV_20160701T005736Z_20170403T005737Z_v1.0_20250724T213304Z
OPERA_L3_DISP-S1_IW_F40291_VV_20160701T005736Z_20161216T005739Z_v1.0_20250724T213304Z
OPERA_L3_DISP-S1_IW_F40291_VV_20160701T005736Z_20170214T005736Z_v1.0_20250724T213304Z
OPERA_L3_DISP-S1_IW_F40291_VV_20160701T005736Z_20170322T005736Z_v1.0_20250724T213304Z
OPERA_L3_DISP-S1_IW_F40291_VV_20160701T005736Z_20161122T005739Z_v1.0_20250724T213304Z
OPERA_L3_DISP-S1_IW_F40291_VV_20160701T005736Z_20170226T005736Z_v1.0_20250724T213304Z
OPERA_L3_DISP-S1_IW_F40291_VV_20160701T005736Z_20160818T005738Z_v1.0_20250724T213304Z
OPERA_L3_DISP-S1_IW_F40291_VV_20160701T005736Z_20170109T005737Z_v1.0_20250724T213304Z
OPERA_L3_DISP-S1_IW_F40291_VV_20160701T005736Z_20160911T005739Z_v1.0_20250724T213304Z
OPERA_L3_DISP-S1_IW_F40291_VV_20160701T005736Z_20170202T005736Z_v1.0_20250724T213304Z
OPERA_L3_DISP-S1_IW_F40292_VV_20160701T005758Z_20160725T005759Z_v1.0_20250412T124848Z
OPERA_L3_DISP-S1_IW_F40292_VV_20160701T005758Z_20170109T005759Z_v1.0_20250412T124848Z
OPERA_L3_DISP-S1_IW_F40292_VV_20160701T005758Z_20160818T005800Z_v1.0_20250412T124848Z
OPERA_L3_DISP-S1_IW_F40292_VV_20160701T005758Z_20161029T005802Z_v1.0_20250412T124848Z
OPERA_L3_DISP-S1_IW_F40292_VV_20160701T005758Z_20170310T005758Z_v1.0_20250412T124848Z
OPERA_L3_DISP-S1_IW_F40292_VV_20160701T005758Z_20170403T005759Z_v1.0_20250412T124848Z
Locally download and Inspect
This code snippet queries NASA’s CMR via the MAAP API to fetch a granule from the OPERA_L3_DISP-S1_V1 collection and downloads it locally into a folder called opera_data. It then uses xarray.open_dataset() with the h5netcdf engine to open the local NetCDF file and inspects its structure, including its shape, coordinates, and variable metadata.
[4]:
results = maap.searchGranule(
short_name="OPERA_L3_DISP-S1_V1",
cmr_host="cmr.earthdata.nasa.gov"
)
data_dir = "opera_data"
os.makedirs(data_dir, exist_ok=True)
file_path = results[0].getData(data_dir)
ds = xr.open_dataset(file_path, engine="h5netcdf")
print(ds)
<xarray.Dataset> Size: 4GB
Dimensions: (y: 7915, x: 9548, time: 1)
Coordinates:
* y (y) float64 63kB 1.995e+06 ... 1.758e+06
* x (x) float64 76kB 7.682e+04 ... 3.632e+05
* time (time) datetime64[ns] 8B 2016-08-18T00:55...
Data variables: (12/13)
spatial_ref int64 8B ...
reference_time (time) datetime64[ns] 8B ...
displacement (y, x) float64 605MB ...
short_wavelength_displacement (y, x) float32 302MB ...
recommended_mask (y, x) float32 302MB ...
connected_component_labels (y, x) float32 302MB ...
... ...
estimated_phase_quality (y, x) float32 302MB ...
persistent_scatterer_mask (y, x) float32 302MB ...
shp_counts (y, x) float32 302MB ...
water_mask (y, x) float32 302MB ...
phase_similarity (y, x) float32 302MB ...
timeseries_inversion_residuals (y, x) float32 302MB ...
Attributes:
Conventions: CF-1.8
contact: opera-sds-ops@jpl.nasa.gov
institution: NASA JPL
mission_name: OPERA
reference_document: JPL D-108765
title: OPERA_L3_DISP-S1 Product
Visualization
This plot visualizes the radar Line-of-Sight (LOS) displacement from an OPERA DISP-S1 granule. The displacement field is displayed with a diverging colormap, highlighting motion towards and away from the sensor.
[ ]:
ds["displacement"].attrs
[ ]:
gname = results[0]["Granule"]["GranuleUR"]
t = re.search(r'_(\d{8}T\d{6}Z)_(\d{8}T\d{6}Z)', gname)
ts = f"{t.group(1)} to {t.group(2)}" if t else "Time unknown"
ds["displacement"].squeeze().plot(
cmap="RdBu", vmin=-0.1, vmax=0.1, figsize=(8, 6),
cbar_kwargs={"label": "Line-of-sight displacement [m]"}
)
plt.title(f"LOS displacement from {ts}")
plt.xlabel("X coord [m]"); plt.ylabel("Y coord [m]")
plt.tight_layout(); plt.show()
Cloud Optimized Remote Access
This setup enables efficient streaming of large NetCDF files from NASA’s cloud using earthaccess and fsspec. By specifying blockcache and tuning HDF5 driver settings like page_buf_size and rdcc_nbytes, it optimizes chunked reads. The dataset is opened in-memory with xr.open_dataset() using h5netcdf, without without pre-downloading the entire file.
[5]:
auth = earthaccess.login()
granules = earthaccess.search_data(
count=1,
short_name="OPERA_L3_DISP-S1_V1"
)
granule = granules[0]
url = granule.data_links(access="direct")[0]
credentials = auth.get_s3_credentials(
endpoint=granule.get_s3_credentials_endpoint()
)
s3 = S3FileSystem(
key=credentials['accessKeyId'],
secret=credentials['secretAccessKey'],
token=credentials['sessionToken']
)
[6]:
io_params = {
"fsspec_params": {
"cache_type": "blockcache",
"block_size": 8 * 1024 * 1024
},
"h5py_params": {
"driver_kwds": {
"page_buf_size": 16 * 1024 * 1024,
"rdcc_nbytes": 4 * 1024 * 1024
}
}
}
[7]:
ds = xr.open_dataset(
s3.open(url, "rb", **io_params["fsspec_params"]),
engine="h5netcdf",
chunks="auto",
**io_params["h5py_params"]
)
ds
[7]:
<xarray.Dataset> Size: 4GB
Dimensions: (y: 7915, x: 9548, time: 1)
Coordinates:
* y (y) float64 63kB 1.995e+06 ... 1.758e+06
* x (x) float64 76kB 7.682e+04 ... 3.632e+05
* time (time) datetime64[ns] 8B 2016-08-18T00:55...
Data variables: (12/13)
spatial_ref int64 8B ...
reference_time (time) datetime64[ns] 8B dask.array<chunksize=(1,), meta=np.ndarray>
displacement (y, x) float64 605MB dask.array<chunksize=(4096, 4096), meta=np.ndarray>
short_wavelength_displacement (y, x) float32 302MB dask.array<chunksize=(5632, 5632), meta=np.ndarray>
recommended_mask (y, x) float32 302MB dask.array<chunksize=(5632, 5632), meta=np.ndarray>
connected_component_labels (y, x) float32 302MB dask.array<chunksize=(5632, 5632), meta=np.ndarray>
... ...
estimated_phase_quality (y, x) float32 302MB dask.array<chunksize=(5632, 5632), meta=np.ndarray>
persistent_scatterer_mask (y, x) float32 302MB dask.array<chunksize=(5632, 5632), meta=np.ndarray>
shp_counts (y, x) float32 302MB dask.array<chunksize=(5632, 5632), meta=np.ndarray>
water_mask (y, x) float32 302MB dask.array<chunksize=(5632, 5632), meta=np.ndarray>
phase_similarity (y, x) float32 302MB dask.array<chunksize=(5632, 5632), meta=np.ndarray>
timeseries_inversion_residuals (y, x) float32 302MB dask.array<chunksize=(5632, 5632), meta=np.ndarray>
Attributes:
Conventions: CF-1.8
contact: opera-sds-ops@jpl.nasa.gov
institution: NASA JPL
mission_name: OPERA
reference_document: JPL D-108765
title: OPERA_L3_DISP-S1 ProductEach data variable (e.g., displacement, temporal_coherence) is internally chunked into blocks (e.g., (5632, 2283), (5632, 3916), or (4096, 3819)). This chunking enables partial reads via HTTP range requests using fsspec, allowing efficient, on-demand access without loading the full file into memory — ideal for cloud-based workflows.
Cloud-Optimized Performance

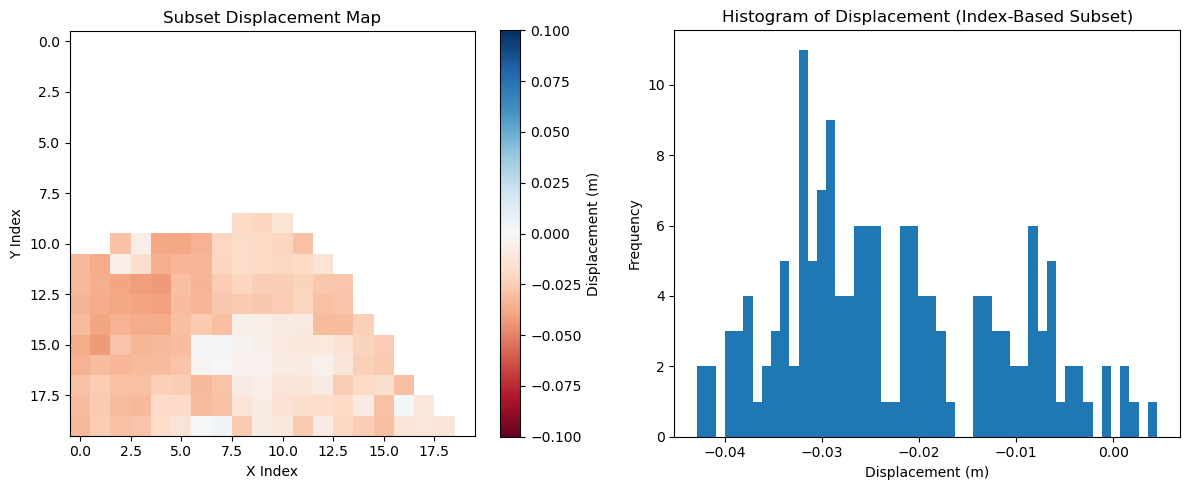

This code uses isel() to select a small index-based window from the displacement variable. It applies .compute() to load only the required chunks with Dask. After filtering out NaNs, it plots a histogram of valid displacement values.
[8]:
%time subset = ds['displacement'].isel(y=slice(230, 250), x=slice(8390, 8410)).compute()
CPU times: user 5.28 ms, sys: 4.11 ms, total: 9.4 ms
Wall time: 8.99 ms
[9]:
subset_vals = subset.values.flatten()
subset_vals = subset_vals[~np.isnan(subset_vals)]
fig, axes = plt.subplots(1, 2, figsize=(12, 5))
# Panel 1: Map of the subset
im = axes[0].imshow(subset.values, cmap="RdBu", vmin=-0.1, vmax=0.1)
axes[0].set_title("Subset Displacement Map")
axes[0].set_xlabel("X Index")
axes[0].set_ylabel("Y Index")
fig.colorbar(im, ax=axes[0], orientation='vertical', label="Displacement (m)")
# Panel 2: Histogram
axes[1].hist(subset_vals, bins=50)
axes[1].set_title("Histogram of Displacement (Index-Based Subset)")
axes[1].set_xlabel("Displacement (m)")
axes[1].set_ylabel("Frequency")
plt.tight_layout()
plt.show()
File Space and Chunk Layout Analysis
Building on the above section, it is important to understand how scientific data files are internally organized. Variables such as displacement or temporal coherence are divided into two-dimensional chunks, which act as independent blocks that can be selectively accessed. Because only the chunks intersecting a user’s query need to be fetched, this structure enables partial reads and reduces unnecessary data transfer. When paired with tuned I/O parameters like buffer sizes and cache settings, chunked layouts make cloud-optimized access possible, ensuring that workflows remain efficient even for very large files. This analysis of file space and chunk organization provides the structural context behind the performance gains observed during remote streaming.
The file uses a paged free-space management strategy (H5F_FSPACE_STRATEGY_PAGE) with a page size of about 4 MB. The raw data accounts for roughly 389 MB, while metadata contributes less than 1 MB, bringing the total file size to about 394 MB.
[12]:
!h5stat -S OPERA_L3_DISP-S1_IW_F40292_VV_20160701T005758Z_20160725T005759Z_v1.0_20250412T124848Z.nc
Filename: OPERA_L3_DISP-S1_IW_F40292_VV_20160701T005758Z_20160725T005759Z_v1.0_20250412T124848Z.nc
File space management strategy: H5F_FSPACE_STRATEGY_PAGE
File space page size: 4194304 bytes
Summary of file space information:
File metadata: 917216 bytes
Raw data: 389683119 bytes
Amount/Percent of tracked free space: 0 bytes/0.0%
Unaccounted space: 3664241 bytes
Total space: 394264576 bytes
Observation:
Strategy:
H5F_FSPACE_STRATEGY_PAGE(paged free-space management)Page size: 4,194,304 bytes (4 MB)
Raw data size: ~389.7 MB
Metadata size: ~0.9 MB
Total file size: ~394.3 MB
The displacement datasets are stored in a chunked layout of (256, 256) with shuffle and deflate compression at level 4. This structure allows efficient partial access and reduces storage size through ~3.5–3.8x compression.
[15]:
!h5dump -pH OPERA_L3_DISP-S1_IW_F40292_VV_20160701T005758Z_20160725T005759Z_v1.0_20250412T124848Z.nc | grep displacement -A 10
DATASET "displacement" {
DATATYPE H5T_IEEE_F32LE
DATASPACE SIMPLE { ( 8036, 9614 ) / ( 8036, 9614 ) }
STORAGE_LAYOUT {
CHUNKED ( 256, 256 )
SIZE 81878337 (3.774:1 COMPRESSION)
}
FILTERS {
PREPROCESSING SHUFFLE
COMPRESSION DEFLATE { LEVEL 4 }
}
--
DATASET "short_wavelength_displacement" {
DATATYPE H5T_IEEE_F32LE
DATASPACE SIMPLE { ( 8036, 9614 ) / ( 8036, 9614 ) }
STORAGE_LAYOUT {
CHUNKED ( 256, 256 )
SIZE 88318187 (3.499:1 COMPRESSION)
}
FILTERS {
PREPROCESSING SHUFFLE
COMPRESSION DEFLATE { LEVEL 4 }
}
Observation:
Raw size of ``displacement``: ≈ 8036 × 9614 × 4 bytes ≈ 309 MB
Chunk geometry: 256 × 256 → each uncompressed chunk = 256 × 256 × 4 bytes = 256 KiB
Approx. number of chunks: ⌈8036/256⌉ × ⌈9614/256⌉ = 32 × 38 = 1216 chunks
Why This Matters
The displacement variable has a raw size of ~309 MB, stored in chunks of
256 × 256(≈256 KB each).With compression (~3.7:1), chunks shrink to ~70 KB on average, making them efficient to stream.
There are ~1200 chunks in total, so grouping them into larger blocks helps reduce overhead.
Implications
Crossing chunk boundaries adds extra reads/decompression.
Dask/xarray should chunk in multiples of
(256, 256)(e.g., 512×512 or 1024×1024).Each task should pull MBs of data (not KBs) to balance performance and memory.
The 4 MB free-space paging aligns well with these access patterns.
The Optimization Parameters We Set
Dask/xarray chunking:
1024 × 1024→ ~4 MB uncompressed per task, ~1–2 MB compressed.Time-stacked collections keep per-time tasks small and efficient.
Windowed reads should align to 256-pixel boundaries to avoid partial-chunk penalties.
Parallelism works best with task sizes in the 1–8 MB range and worker memory in the few-GB range.
See the Cloud-Optimized NetCDF4/HDF5 Guide for more details.
Using OPERA DISP in a DPS job
Refer DPS JOB for running a job in the MAAP ADE to process the OPERA Surface Displacement dataset and extract the results
